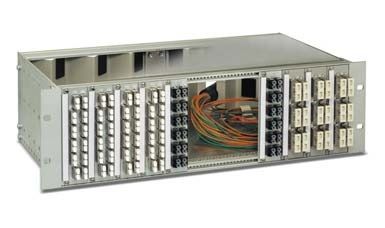

Modular fiber optic distribution panel 19", 3 HU
Add to favorites
Compare this product
Characteristics
- Options
- modular fiber optic
Description
Up to 144 channels (288 fibers).
3 HU Module-Panel for installation in 19" cabinets and racks.
Hole pattern acc. to DIN IEC 60297-3 in 84 divided units (DU) ready to accept up to 12 single 3HU-7DU patchfield part-front-plates.
The following two types are deliverable in front colors silver anodized and RAL 9005 black:
Present type 240 mm depth and new type 295 mm depth.
For more than 72 channels / 144 fibers we recommend our new type 295 mm depth from now.
This panel system is a modular and through this highly flexible platform for FO cabling with all cable types of our factory assembled "Plug-and-Play" FO cabling system PreCONNECT® with all common patchfield connectivity systems.
