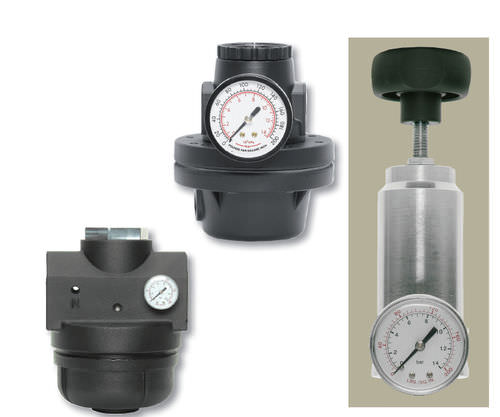

Air filter-regulator-lubricator
compressed air

Air filter-regulator-lubricator - ROSS Controls - compressed air
Air filter-regulator-lubricator - ROSS Controls - compressed air
Air filter-regulator-lubricator - ROSS Controls - compressed air - image - 2
Add to favorites
Compare this product


Characteristics

Designed for
air, compressed air
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.151 psi)

Description

AmblenVMedlaTemperature: 0°tO 158°F (-18°to70°C). Body and Dome: Zinc. Fluid Media: Compressed Air. Inlet Pressure: 400 pstg (27.6 bar) Maximum. Outlet Pressure: Adjustable up to 250 pslg (17.3 bar). Pilot/Gauge Ports: 1/4-NPT Inlet/Outlet Ports. 1/4-NPT gauge Ports 3/8-NPT InleVOutlet Ports, 3/8-NPT gauge Ports 1/2-NPT InleVOutlet Ports. 1/2-NPT gauge Ports 3/4-NPT Inlet/Outlet Ports, 1/2-NPT gauge Ports 1-NPT InleVOutlet Ports. 1/2-NPT gauge Ports 1 %-NPT InleVOutlet Ports. 1/2-NPT gauge Ports Pressure Gauge: 0 to 200 pslg (0 to 14 bar) standard, 1/4-NPTF (1/4 BSPP) gauge ports front and rear; 0 to 600 pslg (0 to 40 bar) optional. Seals: Nltrile. Valve: Brass. Valve Cap: Glass tilled Nylon.
