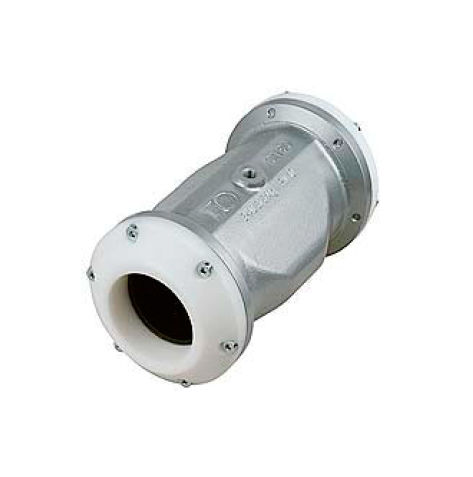

Pinch valve RESK 3599.0for waterfor gasfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- pinch
- Media
- for water, for gas, for compressed air
- Body
- female, aluminum
- Number of channels
- 2/2-way
- Other characteristics
- compact
- DN
Min.: 50 mm
(1.969 in)Max.: 80 mm
(3.15 in)- Pressure
4 bar
(58 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
MAIN VALVE
Housing (01): Aluminum alloy.
Threaded cap (03): POM (polyoxymethylene).
O-Ring (06): NBR (nitrile rubber).
Screw (07): galvanized steel.
Sleeve (08): see material selection.
Port: Female threads, DIN 259.
Ambient temperature: -20° to +50°C.
Media temperature: dependent on sleeve
material (see below).
Flow medium: see RESK 2845.0
Control medium: compressed air, neutral gases, water.
