Pneumatic cylinder 620D
hydraulicspring-returncompact

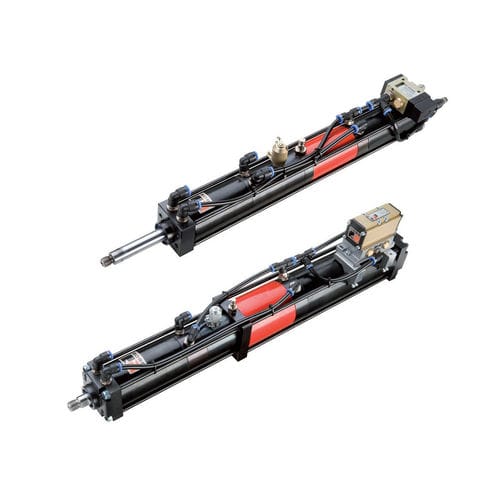

Pneumatic cylinder - 620D - ROSS EUROPA - hydraulic / spring-return / compact
Pneumatic cylinder - 620D - ROSS EUROPA - hydraulic / spring-return / compact
Pneumatic cylinder - 620D - ROSS EUROPA - hydraulic / spring-return / compact - image - 2
Pneumatic cylinder - 620D - ROSS EUROPA - hydraulic / spring-return / compact - image - 3
Pneumatic cylinder - 620D - ROSS EUROPA - hydraulic / spring-return / compact - image - 4
Add to favorites
Compare this product


Characteristics

Type
pneumatic, hydraulic
Configuration
spring-return
Other characteristics
compact, high-pressure
Stroke

Min.: 50 mm
(1.969 in)

Max.: 400 mm
(15.748 in)

Force

Min.: 670 daN

Max.: 98,500 daN

Description

Overall Stroke 50 to 400 mm Power Stroke 6 to 60 mm Power 0.6 to 100 t Operating Pressure 2 to 10 bar. Full power at 6 or 10 bar operating pressure

Catalogs

E620D
E620D
20 Pages
