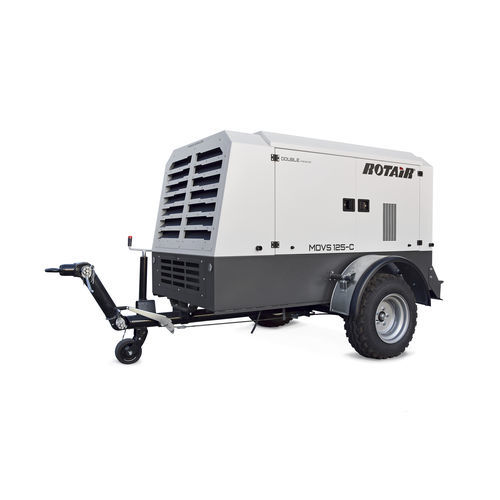

Screw compressor MDVS series
airdiesel-poweredmobile

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel-powered
Portability
mobile
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, direct-drive, cooled
Tank volume

150 l
(39.6 gal)

Pressure

Max.: 12 bar
(174.05 psi)

Min.: 5.5 bar
(79.77 psi)

Flow

Max.: 25,300 l/min
(6,683.55 us gal/min)

Min.: 9,500 l/min
(2,509.63 us gal/min)

Power

93 kW, 97 kW
(126.44 hp, 131.88 hp)

Length

4,524 mm
(178 in)

Width

1,975 mm
(78 in)

Height

2,191 mm
(86 in)

Weight

1,920 kg, 2,020 kg
(4,232.9 lb, 4,453.3 lb)

Noise level

99 dB

Description

Emission and noise compliant units, redesigned and further improved, for bigger job sites. Performance and reliability, low life cycle cost. Each compressor type has also a specific model with integrated after-cooler and condensates filtration, for sandblasting, optic fibres laying and all those applications where cool, dry air is required. Wide range of pressures, with possibility of Dual Pressure Ergonomic, durable machines Lowest acoustic pressure levels as indicated in current legislation provisions Emissions according to the latest parameters Liquid cooling system for engine, more silent and less pollutant. Progressive acceleration of engine with respect to demanded air, permitting lower fuel consumption Accessibility for maintenance “Intelligent System” enables a pre-heating of the engine without overloading it, the airend will start working only when the perfect conditions are reached. Same while turning off the machine after a depressurisation phase of the hydraulic circuit. No hammering of the airend due to its inertial movement, but a gradual turn-off. “ No Key “ control panel, one button to start the machine. Anti-repetitiveness system on the engine start. Avoids stating motor anomalies. Centralized control panel for easy monitoring Skid, axles of different types, with or without brakes, lights to be fit for road circulation under severe homologation parameters. Low life-cycle cost Manufactured in compliance with applicable international standards (CE, ASME, DOSH)
