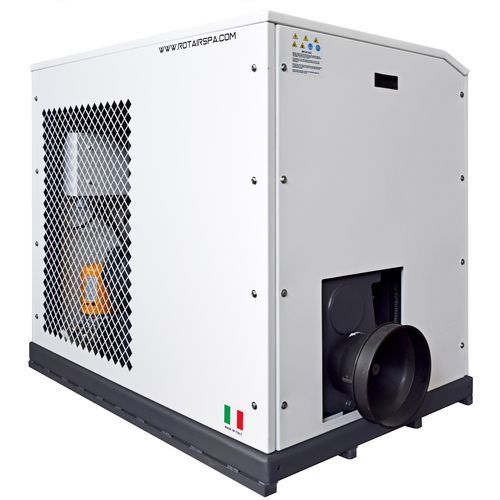

Hydraulic motor compressor TVR seriesscrewairstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- hydraulic motor
- Portability
- stationary
- Lubrication
- oil-lubricated
- Other characteristics
- high-performance, heavy-duty
- Pressure
7 bar
(101.53 psi)- Flow
3,120 l/min, 5,375 l/min, 8,000 l/min
(824.22 us gal/min, 1,419.92 us gal/min, 2,113.38 us gal/min)- Length
810 mm, 900 mm, 1,211 mm
(32 in, 35 in, 48 in)- Width
693 mm, 750 mm, 820 mm
(27 in, 30 in, 32 in)- Height
704 mm, 851 mm, 1,057 mm
(28 in, 34 in, 42 in)- Weight
300 kg, 400 kg, 640 kg
(661.4 lb, 881.8 lb, 1,411 lb)
Description
High performance hydraulic motor driven compressor in compact dimensions, to be fitted on tractors by cardan joint, wherever there is need of high quality compressed air.
Designed for intensive use and performances, is intended for use in agriculture.
Acoustic signal of oil overheating.
Kit to invert the rotation side.
Easily accessible for maintenance.
Possibility to fit on the third point of the tractor (specific structure not supplied).
