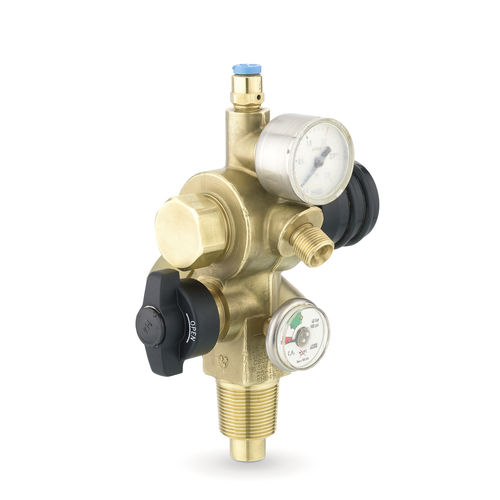

Valve with pressure controller C80 serieswith handwheelfor acetylenefor oxygen
Add to favorites
Compare this product
Characteristics
- Operation
- with handwheel
- Media
- for acetylene, for oxygen, for inert gases
- Body
- male-male, brass
- Fluid specification
- for flammable fluids
- Other characteristics
- ISO, with pressure controller
- Pressure
300 bar
(4,351.1 psi)- Temperature
Max.: 65 °C
(149 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 30 m³/h
(1,059.44 ft³/h)Min.: 2 m³/h
(70.63 ft³/h)
Description
Key advantages
- Brass valve with integrated pressure regulator for Oxygen, Acetylene, Inert, Inert mixtures and flammable gas service (including forming gas)
- Separated filling port
- Outlet: thread or quick connector type
- If non-return valve on filling part, specific filling adaptor recommended
- Outlet pressure / flow adjustable
- Permanent gas tight seal
- π marking according TPED directive
- Tested according EN ISO 22435 and CGA V9 standards
Catalogs
Valves for industrial gases
80 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
Hyvolution 2025
28-30 Jan 2025 paris (France) Stand 6E66
