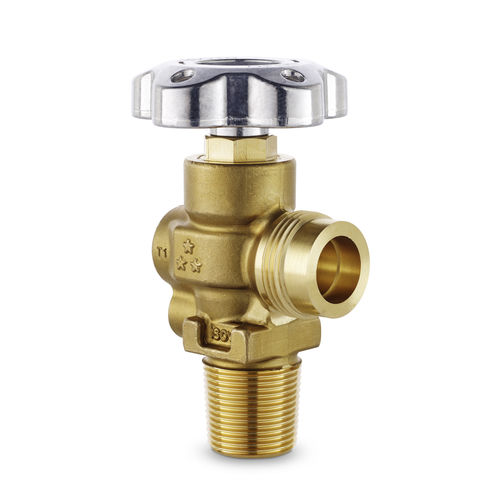

Piston valve RPV Gen5
with handwheelfor oxygenfor CO2

piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
with handwheel
Media
for oxygen, for CO2, for inert gases
Applications
industrial
Associated function
for filling applications
Other characteristics
compact
Pressure

315 bar
(4,568.7 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 65 °C
(149 °F)

Description

Key advantages - Increase your flow capacity thanks to high Cv value up to 0.7 - Bigger stroke of Residual Pressure Device (RPD) piston (up to 7mm) - Improve your productivity - Fit to all existing RPV connections and common industrial gases - Piston stroke (Residual Pressure Device (RPD) Displacement up to 7 mm) enhancing to cover all range of pin length - Compatible with automatic filling station - Oxygen pressure surge tested at 380 bar - Robust & compact patented design up to 315 bar (4000 cycles tested) - Excellent gasket resistance up to 60 blow downs - New handwheel design with integrated rupture safety - Easy guard replacement during maintenance thanks to the compact design
