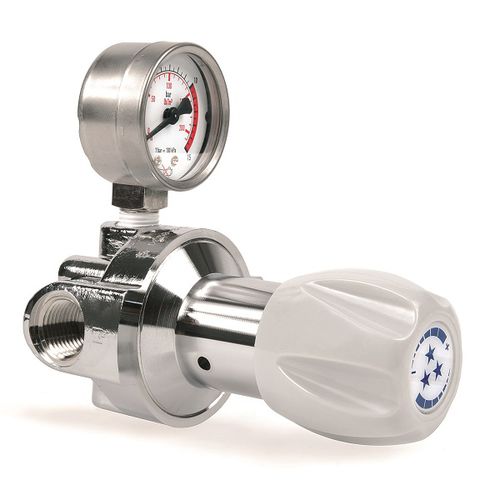

Pressure regulator with balanced valve DC50for gasdiaphragmsingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- nickel-plated brass
- Applications
- industrial, low-pressure
- Other characteristics
- with pressure gauge, for high flow rates, with balanced valve
- Pressure
0.8 bar, 8 bar, 15 bar, 40 bar
(11.6 psi, 116.03 psi, 217.56 psi, 580.15 psi)- Flow
10 m³/h, 150 m³/h, 300 m³/h
(353.15 ft³/h, 5,297.2 ft³/h, 10,594.4 ft³/h)- Orifice diameter
0.5 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Application:
For all applications requiring a low pressure with high flow. Ideally suited as a line regulator in combination with either the MOD supply board or CEN switch-over board.
Key Advantages:
Outstanding pressure consistency with Balanced Valve Technology.
Increased useful lifetime and lower ownership cost
Acetylene version available
Specifications:
Temperature Range: -20º C to + 60º C -4º F to +140º F
Outlet pressure: 3 / 5 / 15 / 40 bar 116/217/580 psi
Body material: Raw Brass or Chrome Plated Brass
