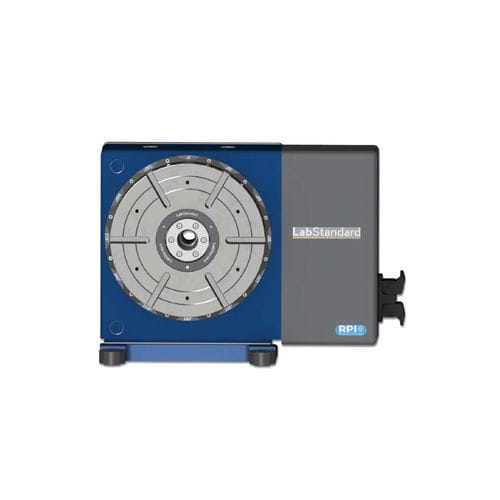

Motor-driven rotary table LabStandardhorizontalverticalhigh-precision
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal, vertical
- Other characteristics
- high-precision, pneumatic
- Diameter
250 mm, 300 mm, 400 mm
(10 in, 12 in, 16 in)
Description
LabStandard
HIGH PRECISION ANGULAR POSITIONING, CALIBRATION AND GEOMETRY INSPECTION
Ultra precise rotary tables intended for fine inspection, metrology and test applications.
Designed for horizontal and vertical applications with self-locking worm gearing and a high accuracy angular encoder ensures sensitivity and fine positioning for metrology and precision testing.
Measurement Capacity:
- Horizontal or vertical applications
- Sizes Ø250mm, Ø300mm, and Ø400mm
- Overall height 225mm (axis vertical)
- Centreline height 240mm (axis horizontal)
- Load capacities up to 1,000kgs
- Load moment up to 500Nm
- Powerful pneumatic clamp (optional)
- Angular accuracy 2 arc seconds
- Angular repeatability 0.5 arc seconds
