Motor-driven rotary table QuadMatichigh-precisionlow-profile
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Other characteristics
- high-precision, low-profile
- Diameter
Min.: 400 mm
(16 in)Max.: 1,500 mm
(59 in)
Description

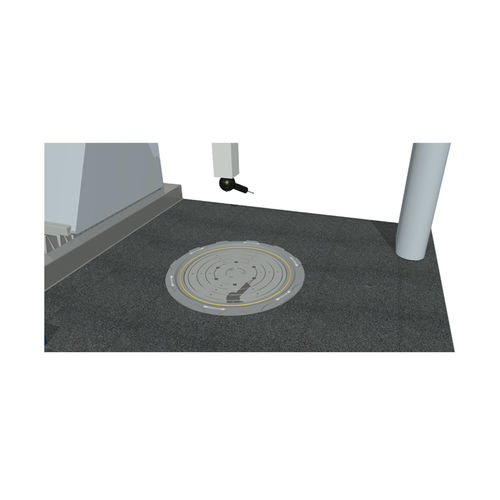

QuadMatic
ADDITIONAL ROTARY AXIS FOR HIGH PRECISION CO-ORDINATE MEASUREMENT MACHINES. ALL QUADRANT PRODUCTS ARE ISO 10360 PART 3 COMPLIANT.
Precision rotary axes specifically developed to increase the flexibility, productivity and efficiency of your CMM.
Ultra low profile, granite integrated rotary table where maximising measurement volume
within the CMM is of utmost importance.
Measurement Capacity:
- Sizes Ø400mm, Ø600mm, Ø800mm, Ø1000mm and Ø1500mm
- Overall height 1mm (submerged in granite)
- Load capacities up to 7,000kgs
- Zero backlash drive
- Angular accuracy 2 arc seconds
- Angular repeatability 0.5 arc seconds
