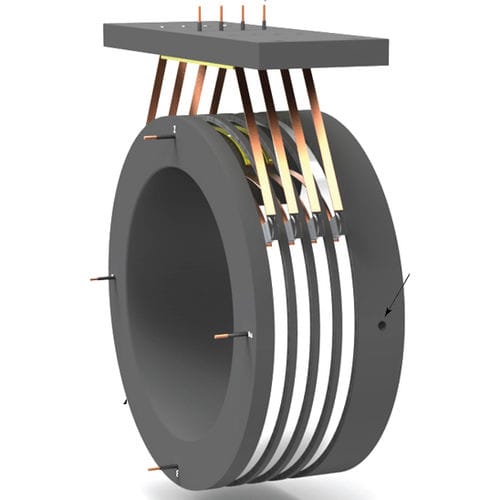

2-part slip ring SR006

SR006 type slip rings are an extension of the smaller SR001 & SR002 type separate slip ring & brush block sets. Designed for low voltage, signal and low power applications makes them ideal for use in test rigs or production equipment. Insulation Resistance: >200MΩ at 500 VDC. Hipot: 500 VAC for 15 seconds (all combinations). Electrical Noise: Less than 10 mΩ peak at 5 rpm. Different numbers of rings to those shown. Slip ring can be bored/sleeved to suit shaft diameter. Increased barrier heights for applications to 240 VAC. Termination type & length to customer requirements. Silver connections to minimize thermal errors. Alternative contact materials for specific applications.
