Electric adapter

for rotary encoders

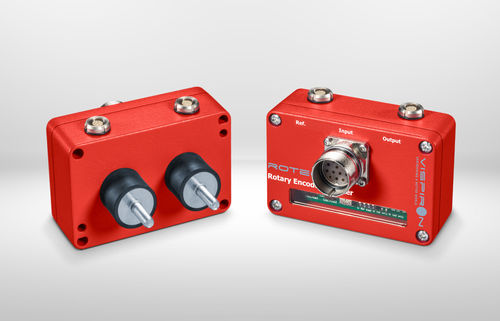

Rotary Encoder Adapter The high-performance Rotary encoder adapter can provide information on the angular positions and, if required, direction information. The electronics also offer the option of recording both TTL and 1Vpp (SIN/COS) signals. Max. encoder input frequency 14 MHz Input signal TTL (RS422) or 1Vpp (SIN/COS) Input 12 pin flange socket Output TTL (8-pol Lemo) Pulse width 24 ns Operating temperature -20°C to 50°C
