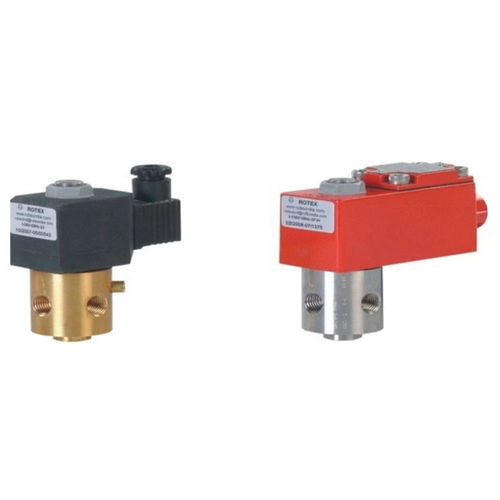

Direct-operated solenoid valve 20101

2-waynormally openwater

2 way direct operated normally open solenoid valve Direct acting solenoid valve are operated directly with the force of the solenoid and due to the same even in 0 bar inlet pressure or 0 bar differential pressure between inlet and outlet port such valve can fully open or close. Generally as here solenoid force is used, generally this force is counter with the pressure force and/or spring force to Open or Close the solenoid valve. Due the same it has a limitation on combination of orifice and pressure rating it can provide for a given solenoid force. Specification of 2 way direct operated normally open solenoid valve Model: 20101 Port Connection: 1/8'' | 1/4'' | 3/8'' | 1/2" MOC: Aluminium | Brass | SS 316 Solenoid: Weather Proof | Explosion Proof | Intrinsically Safe Media:Air | Fuel | Intert gas | Liquid | LPG | Oil | Vacuum | Water Certificate: ATEX | CCOE/PESO | CUTR-EAC | IEC Ex | INMETRO | UKRAINE | CE | UL Application of 2 way direct operated normally open solenoid valve Application: Analyser | Drain | Dispensing
