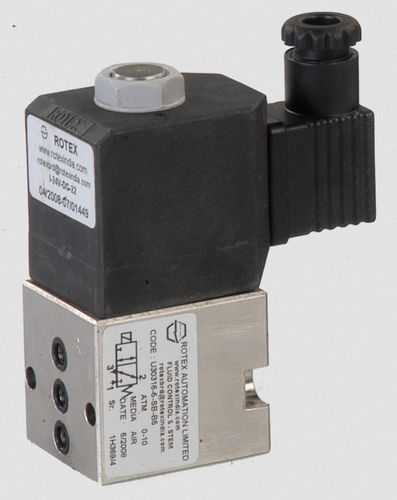

Direct-operated solenoid valve 30316
3-wayNCwater

direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC
Medium
water, for gas
Body
manifold, with sub-base, stainless steel, aluminum
Process connection
G 1 1/2, G 1/2, G 1/4, G 2, G 1, G 3
Other characteristics
explosion-proof, with actuator, mixer
DN

Max.: 10 mm
(0.394 in)

Min.: 5 mm
(0.197 in)

Voltage

Max.: 220 V

Min.: 12 V

Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Pressure

Max.: 16 bar
(232.1 psi)

Min.: 0 bar
(0 psi)

Description

Model: 30316LW Port Connection: 1/4" MOC: Aluminium | SS316 Solenoid: Weather Proof | Explosion Proof | Intrinsically Safe Media:Air | Inert Gas Application: Actuation of Control Valve | Single acting Actuator/ Cylinder Certificate: ATEX | CCOE/PESO | CUTR-EAC | IEC Ex | INMETRO | UKRAINE | CE | UL

VIDEO

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
