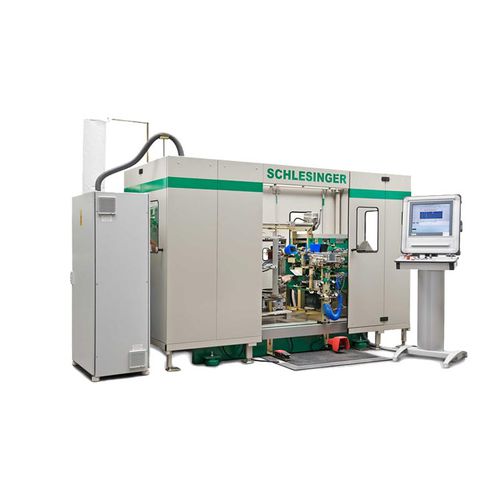

Automatic filling machine U-BFA11/E4multi-containersolidsweight
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Container type
- multi-container
- Product applications
- solids
- Type
- weight, pneumatic
- Other characteristics
- 4-axis
- Throughput
450 p/min
- Machine length
2 m
(6'06" )- Machine width
2 m
(6'06" )- Machine height
2 m
(6'06" )- Machine weight
1,700 kg
(3,747.86 lb)
Description
Universal Drilling and Filling-Machine with one drilling and one filling station, with 4-axis PC-control programming free.
Tool size:
2,0 mm - 8,00 mm
Tool stroke:
65 mm (Standard)
Material length:
35-200 mm (unfolded)
2 pneumatic stations, running continuously.
Changing of the brush bodies from drilling to filling.
Control of failure and breakdown by indicator.
High speed, simple and quick changing from one model to the other.
Home manufacturing of brush programmes automatically, manually by keyboard or “Teach-In method“.
Machine speed:
450 Bundles / min.
Noise level:
75 dB.
Electrical connection:
4,0 KW
Weight:
approx. 1.700 kg, net
Dimensions:
D: 1,60 m W: 1,85 m H: 1,60 m.
Changeable frames for all types of brushes are deliverable.
