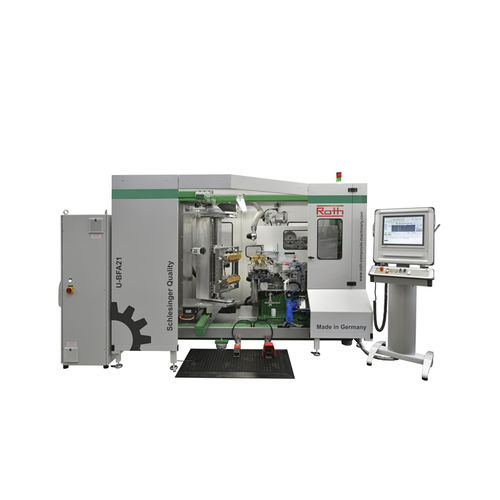

CNC drilling machine U-BFA21/E55-axisfor profilespneumatic
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Number of axes
- 5-axis
- Applications
- for profiles
- Other characteristics
- pneumatic
Description
U-BFA21/E5
Universal Drilling and Filling-Machine with two drilling and one filling station, with 5-axis PC-control programming free.
Tool size:
2,0 mm - 8,00 mm
Tool stroke:
65 mm (Standard)
Material length:
35-200 mm (unfolded)
2 pneumatic stations, running continuously.
No changing of the brush bodies from drilling to filling.
Control of failure and breakdown by indicator.
High speed, simple and quick changing from one model to the other.
Home manufacturing of brush programmes automatically, manually by keyboard or “Teach-In method“.
Machine speed:
450 bundles / min
Noise Level:
75 dB.
Electrical connection:
4,0 KW
Weight:
approx. 1.900 kg, net
Dimensions:
D: 1,95 m W: 2,30 m H: 1,85 m.
Changeable frames for all types of brushes deliverable.
