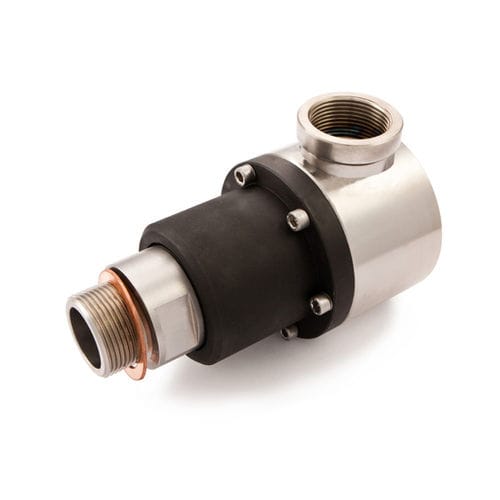

Hot oil rotary union G seriesfor steam2-passagehigh-temperature
Add to favorites
Compare this product
Characteristics
- Medium
- for hot oil, for steam
- Number of passages
- 2-passage
- Applications
- high-temperature
- Material
- stainless steel
- Other characteristics
- screw-in, with seal
- Rotational speed
250 rpm, 300 rpm, 450 rpm, 500 rpm
(1,570.8 rad.min-1, 1,884.96 rad.min-1, 2,827.43 rad.min-1, 3,141.59 rad.min-1)- Pressure
6 bar, 10 bar
(87 psi, 145 psi)- Nominal size
0.75 in, 1 in, 1.25 in, 1.5 in, 2 in
Description
The G Series rotary unions have been expecially developed in order to manage the flow of high temperature liquids.
The special bellow, specifically designed in stainless steel for this very application, guarantees a long life for the unions, without problems even in case of very demanding applications.
The graphite micro-lapped seals, thanks to the flexibility of the bellow, perfectly match the case-hardened steel seal of the rotating shaft. The two sintered graphite bushings allow a perfect axial rotation without any problems.
