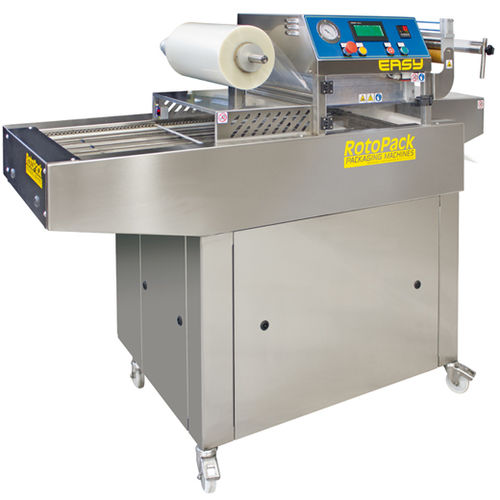

Linear tray sealer EASY

automaticvacuumcompact

• Automatic vacuum /MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc. ; • Tools easy to change and interchangeable with mod. SVR BASIC, SVR, SVR TURN and RAPIDA +; • Compact size; • Teflon coated sealing plate; • Digital temperature controller with PT 100 probe; • Pressure sensor for vacuum and gas; • Moduls made on tray samples for any shape • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening • Extra vacuum and extra gas functions • Touch screen with 10 storable programs; • Structure in stainless steel and aluminium; Optional: • Version “only sealing”; • Special vacuum pump for gas mixtures with high oxygen%; • Photocell for printed film POWER: 400 V - 50/60 HZ 3P+N+PE POWER CONSUMPTION: 3,5 KW AIR SUPPLY: 20 NI/ciclo - 6 bar WEIGHT: Kg. 300 MAX. CONTAINER DIMENSION: 360 x 270 x h.100 mm MACHINE DIMENSIONS: Cm. 160 x 080 x h.131 VACUUM PUMP: 60 M3 MAX. FILM WIDTH: 430 mm. PRODUCTIVITY VAC-GAS/ONLY SEALING: 5 / 12 cicli/min
