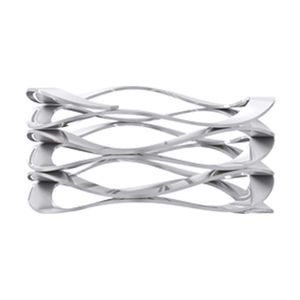

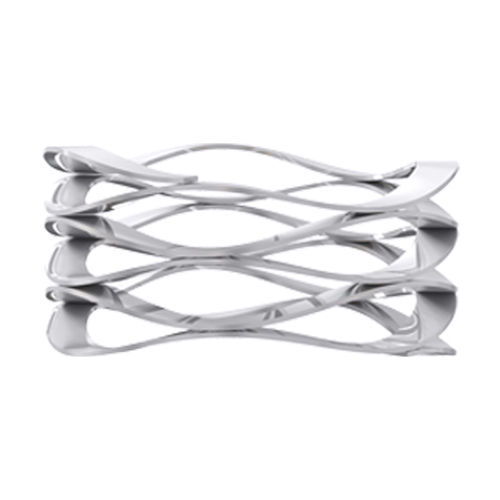

Compression spring MWR-12 A

flat wirewavesteel

Pilots & Operates In Housing Diameter Dh mm 12.000 mm Shaft Diameter Clearance Ds 8.500 mm Section S 1.100 mm Thickness T 0.300 mm Free Height Fh 4.340 mm Number Of Waves 2.500 Number Of Turns 3.000 Work Height WH 1.980 mm Spring Rate (Ref) 25.400 N/mm Materials Carbon Steel (SAE 1060-1090) Special Material Grades Stainless Steel AISI 302 Stainless Steel AISI 316 Stainless Steel (17-7 PH/C) Finishes ***For plated rings, add .002" (.05 mm) to the listed maximum thickness. OIL - Oil over Steel, Carbon Steel SPP - Passivate, Stainless Steel Vapor Degreased & Ultrasonic (Stainless Finish), Stainless Steel ETM - Vibratory Deburr, Stainless Steel Description Multi Turn, Metric. Used for low to medium force applications with greater travel compared to single-turn springs. Utilizes nearly half the space as helical compression springs while producing the same force.
