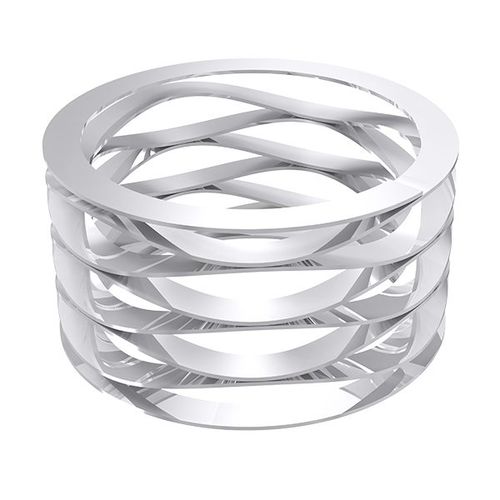

Compression spring WSR-50 A

flat wirewavesteel

Pilots & Operates In Housing Diameter Dh Dec 0.500 inches Pilots & Operates In Housing Diameter Dh mm 12.700 mm Shaft Diameter Clearance Ds 0.312 inches Section S 0.060 inches Thickness T 0.012 inches Free Height Fh 0.180 inches Number Of Waves 2.500 Number Of Turns 3.000 Work Height WH 0.075 inches Spring Rate (Ref) 143.000 lbs./in. Materials Carbon Steel (SAE 1060-1090) Special Material Grades Stainless Steel AISI 302 Stainless Steel AISI 316 Stainless Steel (17-7 PH/C) Finishes ***For plated rings, add .002" (.05 mm) to the listed maximum thickness. OIL - Oil over Steel, Carbon Steel SPP - Passivate, Stainless Steel Vapor Degreased & Ultrasonic (Stainless Finish), Stainless Steel ETM - Vibratory Deburr, Stainless Steel Description Multi Turn, Inch. Used for low to medium force applications with greater travel compared to single-turn springs. Utilizes nearly half the space as helical compression springs while producing the same force.
