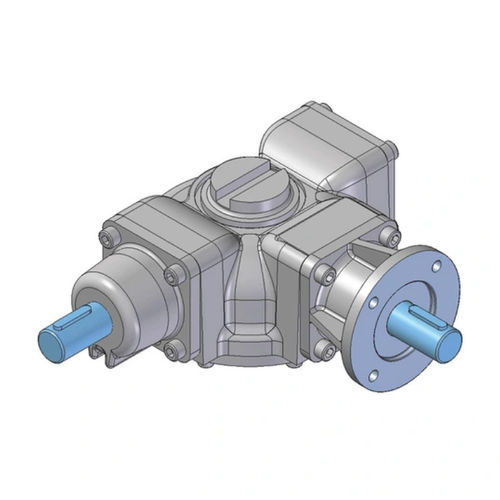

Bevel gearbox DSB

right angledual-shaftfor valve actuators

Complete range of multi-turn bevel gearboxes with two shafts for use with dual stem sluice gates and penstocks. Torque range up to 8,135 Nm (6,000 lbf.ft) Thrust range up to 1,320 kN (296,750 lbf) 13 sizes Ratios from 1:1 to 120:1 Ductile iron baseplates Comprehensive gear ratios combined with a selection of spur input reducers Pinions mounted on ball bearings IP67 Options for all types of environment , including IP68 Optional position indications Optional input shafts available at 90º & 180º to each other 90° & 180° DSB available for IB4 to IB9 180° DSB available for IB10 to IB14
