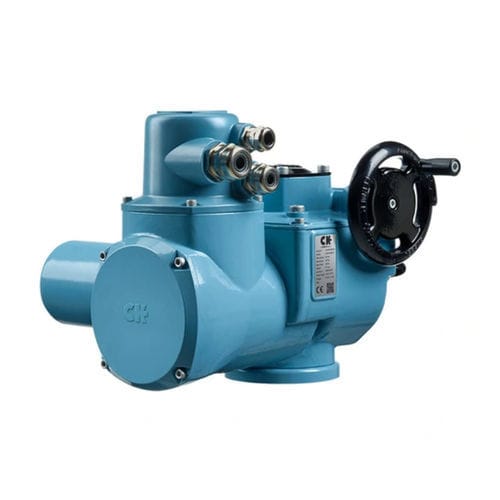

Electric valve actuator CK

multi-turnpart-turnIP68

CK range actuators are suitable for valves in non-hazardous locations. The modular product range facilitates a number of different control package configurations to meet your application requirements. • Modular design provides an off-the-shelf solution for spares and upgrading • Plug and socket connection for easier field wiring • Continuous valve position indication even during power loss • Non-intrusive setting via infrared or optional Bluetooth with the intelligent CKc - Centronik module • Hollow output drive to accept rising valve stems • Detachable base options • Secure, padlockable, manual handwheel drive fully independent of the motor drive train • IP68 rating (8 m for 96 hrs) as standard provides enhanced environmental protection • Extended life with oil bath lubrication CK Multi-turn actuator performance • Direct output torque range: 10 - 500 Nm (7 - 369 lbf.ft) • Max. torque with standard multi-turn gearbox: 6,750 Nm (4,979 lbf.ft) • Max. torque with standard part-turn gearbox: 205,600 Nm (151,600 lbf.ft)
