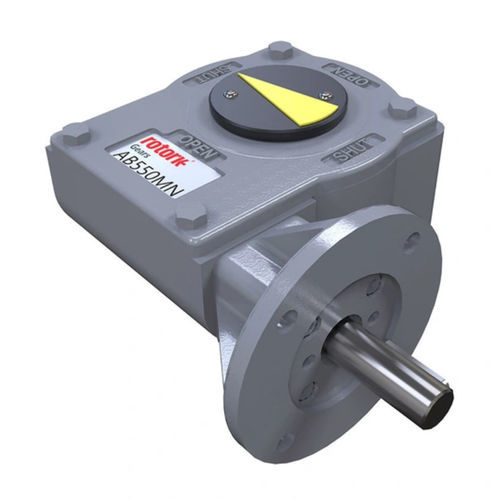

Motorized valve actuator ABM

quarter-turnworm gearball

The ABM Series are rugged, industrial grade products manufactured with cast iron housing components, featuring a polyurethane coating and high performance axial bearings. Application: The ABM operators are quarter-turn devices intended for the operation of ball, plug and butterfly valves as well as power and process dampers. These gear operators are well suited for applications in chemical, power, waterworks, HVAC and most general industrial applications. The ABM operators will support electric actuators weight up to 46 kg (101 lbs) and a speed up to 96 rpm. Features: Torque range up to 2,000 Nm (1,475 lbf.ft) 4 sizes Ratios 34:1 to 200.7:1 Input: F/FA10 Ductile iron housing C45 carbon steel input shaft Output: F/FA07, F/FA10, F/FA12, F/FA14, F/FA16 Rugged construction Axial thrust bearings Stroke: 0 - 90° (± 5° adjustable) Removable insert ATEX approved Standard duty IP67 Standard temperature -20 to +120 °C (-4 to +250°F)
