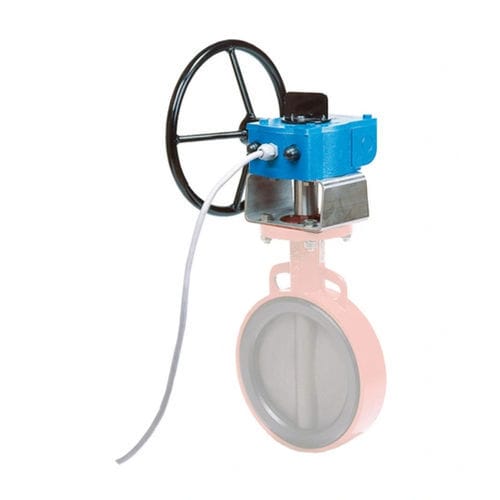

Manual valve actuator ABLX
quarter-turnworm gearrugged

manual valve actuator
manual valve actuator
Add to favorites
Compare this product


Characteristics

Type
manual
Movement
quarter-turn
Technology
worm gear
Other characteristics
rugged, with indicator, with integrated limit switch, for butterfly valves
Torque

Max.: 1,620 Nm
(1,194.85 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Description

Cast iron quarter-turn gearboxes with integrated limit switches for remote position indication suited for fire protection. Torque range up to 1,620 Nm (1,196 lbf.ft). 4 sizes. Ratios from 34:1 to 40:1. Integrated limit switches. Cast iron housing Rugged construction Removable output drive sleeves IP67 Different types of position indicators Suitable for FM/UL/APSAD applications
