- ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.

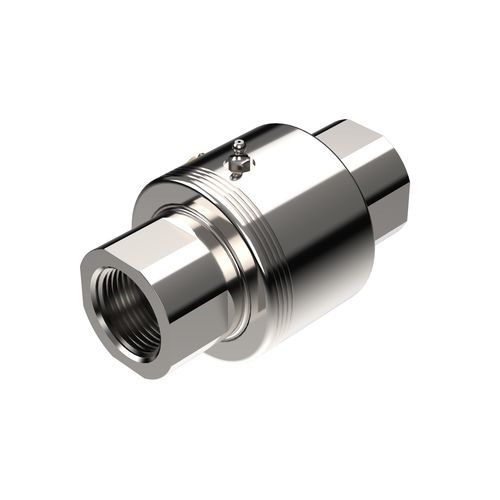

Hydraulic fitting E4-DDS seriesthreadedstainless steelswivel
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Material
- stainless steel
- Other characteristics
- swivel, NPT
- Diameter
Min.: 8 mm
(0.315 in)Max.: 40 mm
(1.575 in)- Operating pressure
Min.: 0 bar
(0 psi)Max.: 200 bar
(2,900.75 psi)
Description
Swivel Joint for water, hydraulic oil, gress and chemical fluids
Media Type
Hydraulic Oil, Water + General Purpuse
Max. Speed
20 RPM
Max. Pressure
100-200 Bar
Max. Temperature
120 °C
Rotor Size
1/4" DN08 - 1 1/2" DN40
Connection Type
BSPP, BSPT, NPT, Metric
Single flow design,
Stainless steel material
Hardened inner sealing surface
Special design sealing components
Easy changable repair parts
BSP, BSPP, NPT, UNF, Metric threads...
Catalogs
No catalogs are available for this product.
See all of ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ.‘s catalogsOther ROTOTECH MAKİNA SAN. VE DIŞ TİC. LTD. ŞTİ. products
Swivel Joints
