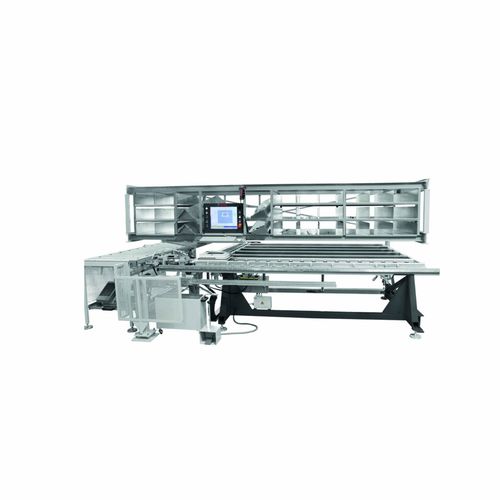

Assembly workstation FBA 644

ergonomicautomatic

• For insertion of fitting parts for max. sash outer • dimension of 2.500 mm from the operator side • Automatic screwing at one window side • Fitting punching at the operator side with NC-axis • Ergonomic work through tipping setting • Screwdriver with screw feeding at the automatic screw • axis incl. 8 screw heights • PC-control for connection to an AV-system • Bar code scanner Technical data Power (kW) : 2 Voltage (V) : 400 Operating pressure (bar) : 7 Air consumption (l/min) : approx. 320 (jdepending on the sash size) Sash profile height (mm) : max. 100 Sash profile width (mm) : max. 115 Sash frame measure (mm) : 300 - 2.500 Machine dimension L x D x H (mm) : approx. 4.600 x 3.700 x 2.400 Weight (kg) : approx. 1.800
