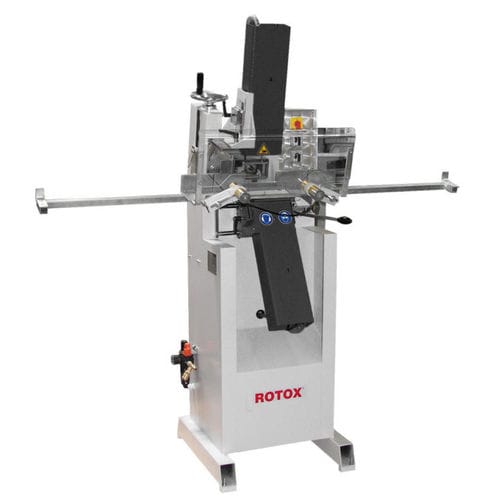

Slot milling machine FWS series

multi-axisuniversal

Advantages • The travel of the lower milling unit guarantees the • staggered slots of the inner bead drainage • Adjustment of the units to the milling positions • by hand wheels and adjusting aids • Equipment with 3 milling units • Simultaneous milling of 2 staggered, lengthwise • adjustable drain slots in 2 (3) planes • Pressure gauge with filter • more options Technical data Power (kW) : 3 x 0,5 Voltage (V) : 230 Operating pressure (bar) : 7 Revolution milling motor (rpm) : 24.000 Workable profile width (mm) : min. 40, max. 120 Workable profile height (mm) : min. 50, max. 80 Machine dimensions L x D x H (mm) : 600 x 900 x 1.750 Weight (kg) : approx. 150
