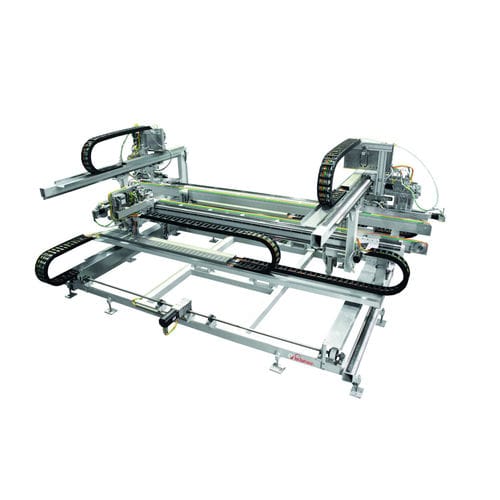

Motor-driven screwing machine FB-SA 400/P4

for screw assembly

• For screwing previously inserted sash fitting parts without • scissor closing device on the 4 sash legs • Portal construction for the screwing units • Automatic positionsing and transporting device via two-strand • flat belt conveyer • 4 or even 6 pieces of screwing feed units motor-driven via NC-axes • Automatic screw feed for one screw type • Adjustable real-time torque control • PC control (usually mounted on the sash assembly table 46.52K202), • incl. data reception for the screwing process • Incl. up to 20 programmes for sash and mullion profiles • Corner hinge screwing only in longitudinal direction • Screw size 3,5 - 4 mm, length max. 38 mm Technical data Power (kW) : 17 Voltage (V) : 400 / 50 Hz (3~/N/PE) Operating pressure (bar) : 6 Air consumption (l/min) : 600 Workable profile width (mm) : 60 - 130 Workable profile height (mm) : 60 - 125 Inner sash widths (mm) : 220 - 1.600 mm Inner sash heights (mm) : 220 - 2.650 mm Max. outer contour incl. fitting parts (mm) : 1.700 x 2.800 Profile support side : Inner surface down Max. frame, sash size L x H (mm) : 4.000 x 3.000 (element thickness max. 125) Min. window size L x W (mm) : 320 x 320 Machine dimension L x D x H (mm) : 5.200 x 4.200 x 2.000
