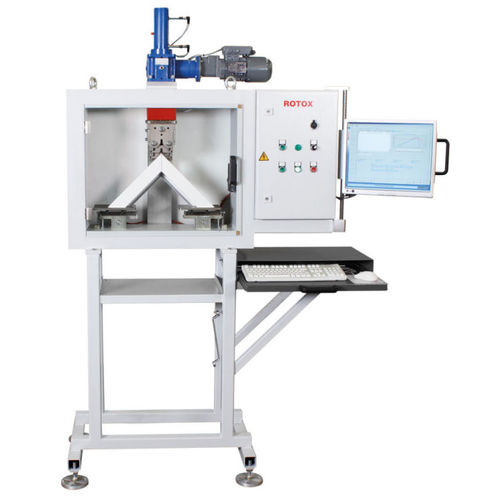

Resistance testing system EPG 3951

for welding unitsindustrialdigital

• Solid housing with safety glassdoor • Motordriven stamp feed by regulated three phase current motor • Permanent force insert with spindle hoist gear • Linear guided stamp • Stamp customizable to the profile contour • Direct force measuring with piezo force transducer • Digital indicator for the facture values • Effective range 0 - 20000 N facture value • Test of corner strength on welded profiles according RAL-GZ716/1 resprectively DVS 2207 detail 25 possible Technical data Power (kW) : approx. 2,2 Voltage (V/Hz) : 230 / 50 Weight (kg) : approx. 250 (depending on specification)
