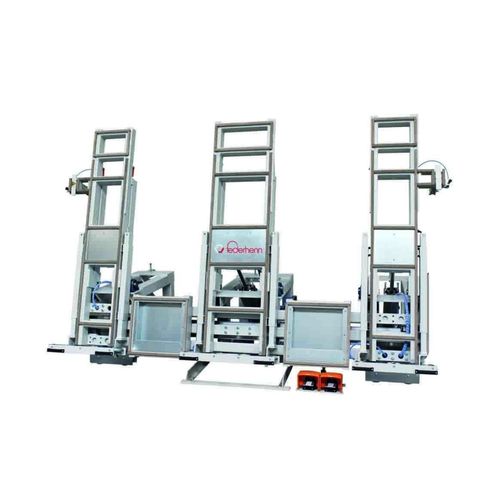

PVC windows and door assembly bench Multiflex

PVC windows and door assembly bench - Multiflex  - ROTOX GmbH
PVC windows and door assembly bench - Multiflex  - ROTOX GmbH
Add to favorites
Compare this product


Characteristics

Product to be assembled
for PVC windows and doors

Description

• Work surface with felt strips • Fixed loading arms with PVC-guide rails • Pneumatic tilting device 0 - 90° • Relief of the employees by ergonomic working Optional extras: • Swiveling loading arms with steel role • Foot valve • Clamping range of the flat clamping cylinder 320 mm • Transport wheel stands Technical data Operating pressure (bar) : 6 Basismodul width (mm) : 500 (Modul left and right 350) Height extendible (mm) : 2.100 - 3.200 Length extendible (mm) : 2.800 - 7.000 Working height (mm) : 900 - 1.000 Loading capacity (kg) : 400 Machine dimension L x d x H (mm) : 2.800 x 2.100 x 1.000 Weight (kg) : 1.550
