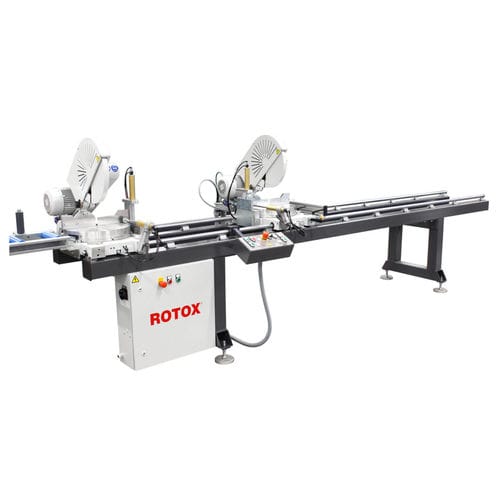

PVC double-head miter saw ZGS 311

for aluminumfor profiles

• Rotation angle of the profile support: 45° - 90° - 45° • with lock-in positions at 45° - 67,5° - 90° - 67,5° - 45° • Pneumatic horizontal and vertical profile clamping • Left or right saw unit manuelly moveable • Measurement sensing readable by scale or digital measurement reading • Manuel stop for shot parts • Profile support to be inserted and displaced manually • Extraction socket • more options Technical data Saw blade-Ø (mm) : 400 Saw blade revolution (rpm) : approx. 3.700 Cutting length (mm) : min. 510 (double section) min. 250 (minimum size stop) max. 3.750 Power (kW) : 2 x 2,2 Voltage (V) : 400 Air consumption (l/sawing sequence) : approx. 17 Operating pressure (bar) : 7 Machine dimension L x D x H (mm) : 4.300 x 1.125 x 1.450 Weight (kg) : approx. 450
