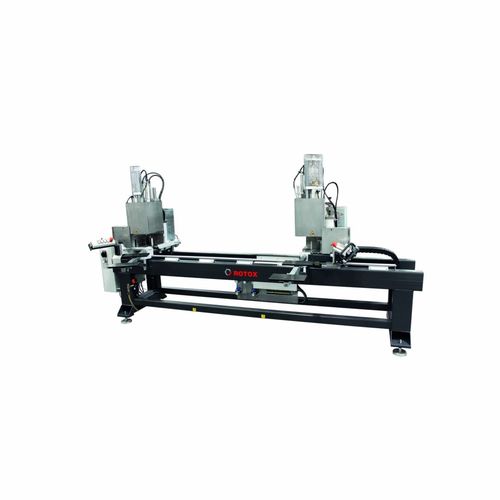

Wedge welding machine SZK 50 series

PLC-controlledfor profilesdual-head

• Solid machine frame with stable guidance of the • moveable welding head • Welding heads have a robust aluminium casting • construction • Left head fixed, optional: right head fixed • Automatic pressure and retraction of the units • Restriction knives of hardened and stainless steel • Turret stop of 6 different profile heights • Modern PLC control • Welding seam limitation 0,2 - 2,0 mm • Quick changing device for the teflon foil • Profile quick clamping device • Quick changing system for the welding blocks • more options Technical data Power (kW) : 4 Voltage (V) : 400 Operating pressure (bar) : 6 - 7 Air consumption per welding cycle (NL) : approx. 130 Welding width (mm) : 440 - 3.000 (also other sizes available) Profile height (mm) : 30 - 140, (optional 200) Machine dimensions L x D x H (mm) : approx. 3.700 x 1.100 x 1.800 Weight (kg) : approx. 700
