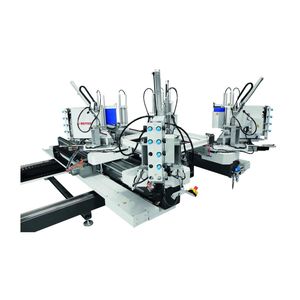

Wedge welding machine SMK 50 series

automaticmulti-headhorizontal

• Up to 5 universal welding heads in line (also pivoting) • Welding units designed for cornerss, transoms, cross and H-Welding (turned) • Alternatively welding with all welding units at the same time, in pairs or individually • Adjustable and selectable limit stops for different transom welding operation • Restrictor knives of hardened stainless steel adjustable to a weld seam limitation • of 0,2 to 2,0 mm • Welding blocks easily and quickly exchangeable by plug-in and clamping system • More options Technical data Power (kW) : approx. 3,0 per welding head Voltage (V) : 400 Operating pressure (bar) : 6 - 7 Air consumption per welding head (NL) : approx. 40 Clamping height (mm) : 30 - 150 Welding width (mm) : max. 5.000 Weight (kg) : 3.200 (depending on specification)
