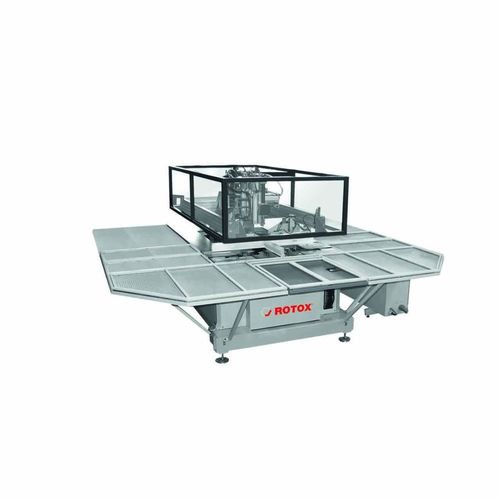

PVC windows and door angled deburring machine EKA 57 series

3-axisfully-automaticCNC

• Fully automatic cleaning of corners, transoms and cross welds, • visible surfaces, outer corners, gasket drilling and inner corners • on uPVC window frames and sashes • Variable tooling with up to ten tool places + counter milling disk • Cross processing in one clamping • The profile support side can be selected before specification • High processing quality owing to spring-mounted knifing units • compensating profile tolerances in the inner corner area • Easy program editing for additional profile contours by copy • programming and modification • Automatic profile recognition • Maintenance-friendly precision guides • Interpolating 3-axes-CNC control with integrated PLC • More options Technical data Power (kW) : 4,5 Voltage (V) : 400 Operating pressure (bar) : 7 Workable profile width (mm) : 50 - 120 Workable profile height (mm) : 45 - 95 Machine dimension L x D x H (mm) : 3.500 x 3.300 x 1.800 (with support table) Weight (kg) : approx. 1.400
