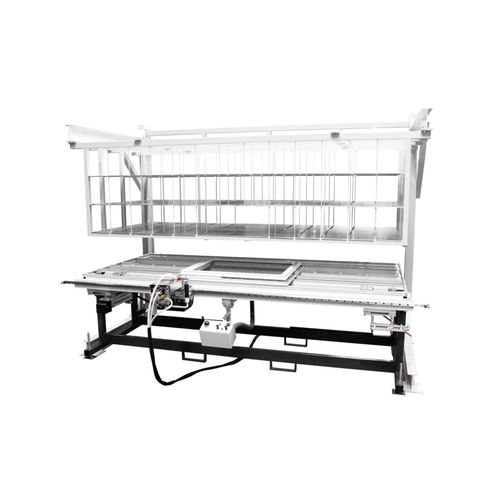

Window and door assembly bench FM 30 series

sash

- FM 3002: • Manually controlled operation of the sash - FM 3012: • PLC controlled operation of the sash centering device • Smooth running adjustment of the sash clamping and centering device, screwing unit and corner hinge drilling unit by precision flat guides • Pneumatic swivel device Technical data Air pressure (bar) : 6 - 8 Air consumption (L) : approx. 200 (depending on the sash size) Sash height (mm) : 60 - 100 Sash width (mm) : 60 - 130 Inner sash size (mm) : 270 - 2.700 Outer sash size (mm) : min. 510 Working height (mm) : 900 - 950 adjustable Machine dimension L x D x H (mm) : approx, 3.200 x 2.000 x 1.000 Weight (kg) : approx. 400 - 475
