CNC drilling machine CP 15/25/32
verticalcolumn type

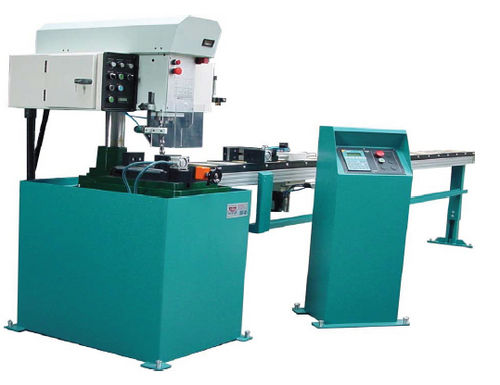

CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type - image - 2
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type - image - 3
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type - image - 4
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type - image - 5
CNC drilling machine - CP 15/25/32 - ROTY ET FILS - vertical / column type - image - 6
Add to favorites
Compare this product


Characteristics

Type
CNC
Structure
vertical, column type

Description

DRILLING UNIT . Drilling capacity : 15, 25 or 30mm . CM3 cone . Column : 100 mm . Spindle sleeve 80 mm . Spindle sleeve stroke : 125 mm . Spindle axe - column distance : 235 mm . Engine : 1,5 to 5 HP MAXI . Speed : 80 to 3000 Rpm by electronic inverter . Speed digital display . Spindle stroke by brushless servomotor . Pneumatic vice width 200 mm centered on the spindle . Back vices adjustable by screw, hand wheel and mechanical digital display. Resolution 0,1 mm . Base . Available functions - Single drilling - Tube drilling : fast / slow / fast / slow + fast return - Drilling with stripping - Drilling + spot facing . Digital display of the spindle down NC FEEDER . Carriage guidance by precision pulley . Roller table - width 200 mm with rollers Ø 400 mm spaced 200 mm . Safety panels between the rollers . Pneumatic gripper (opening 0 to 200 mm) . Carriage speed: 0 to 24 m/mn . Axis controlled by NC . Stroke 2000 to 8000 mm
