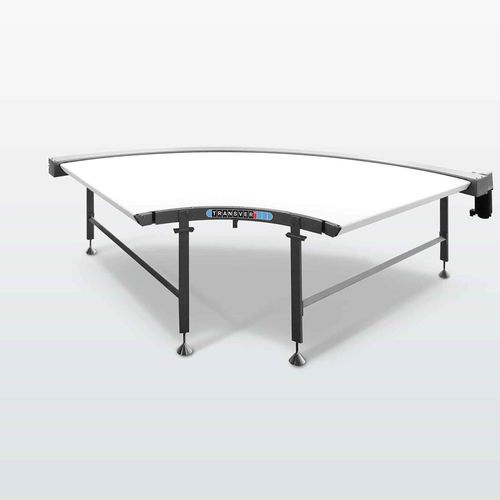

Belt conveyor KC Transver

curvedtransportmodular

You can customize its angle and radius - Simple, modular design Minimum space requirement through low construction height Quick installation and commissioning Maintenance friendly design with low cost Slip-free drive trough use of a deflection chain Gentle transportation of even small fragile products Proved very long lifetime - low total cost of ownership Hygiene food safe design (FDA/HACCP) Washdown version available The Transver type KC belt bend is built to a high standard of hygiene thanks to easy access, open design, and standardized stainless steel, providing numerous options. It, therefore, fits perfectly for applications in the food and non-food industry. With belt widths from 200 to 2’500 mm (in steps of 50 mm), angles between 30° and 270°, an inner radius as small as 330 mm, and a construction height of only 144 mm, the belt bend adapts optimally to all space conditions. The use of small, cylindrical end rollers of 10, 14 mm, or knife edges with a 3 mm radius allows gentle and precise transportation of even the most miniature products. Despite this, the KC curved conveyor accepts loads of up to 100 kg. The chain-driven belt guarantees a slip-free start-stop even with the heaviest loads. A simple belt change towards the center is another curved conveyor-type KC feature. Customized dimensions allow for seamless integration into your line. Ask for a wash-down version if you need it.
