Heavy load bearing NU | NNU
cylindrical rollerradialsteel

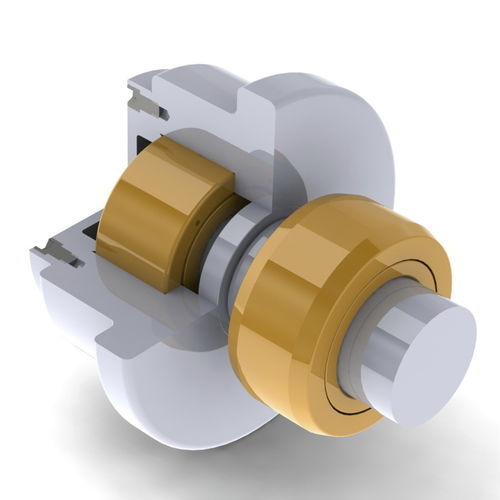

Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel - image - 2
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel - image - 3
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel - image - 4
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel - image - 5
Heavy load bearing - NU | NNU - ROULTEX - cylindrical roller / radial / steel - image - 6
Add to favorites
Compare this product


Characteristics

Rolling element
cylindrical roller
Configuration
radial
Material
steel
Applications
for industry, for conveyor, for mining and the metallurgical industry, rugged
Other characteristics
long-life, custom, for heavy loads, wear-resistant, for extreme conditions
Inside diameter

Min.: 20 mm
(0.79 in)

Max.: 400 mm
(15.75 in)

Outside diameter

Min.: 70 mm
(2.76 in)

Max.: 650 mm
(25.59 in)

Width

Min.: 20 mm
(0.787 in)

Max.: 200 mm
(7.874 in)

Description

Thanks to our 1964 patents for urban chain trucks, and our nearly 100 years of experience in the field, we are able to guarantee the reliability, quality and durability of the INEGALÉE site to date in the world. These ROULTEX® thrust bearings or pressure rollers are built-in. They have been specially designed for the trolleys of ore agglomeration chains, supporting heavy loads in the most polluted environments. The design of these bearings makes them more resistant and robust to shocks and abrasive dust, thus reducing the risk of wear and failure due to the work environment. The extreme simplicity of this roller makes it easy and inexpensive to build and install, and it can replace conventional type push rollers in all their applications.
