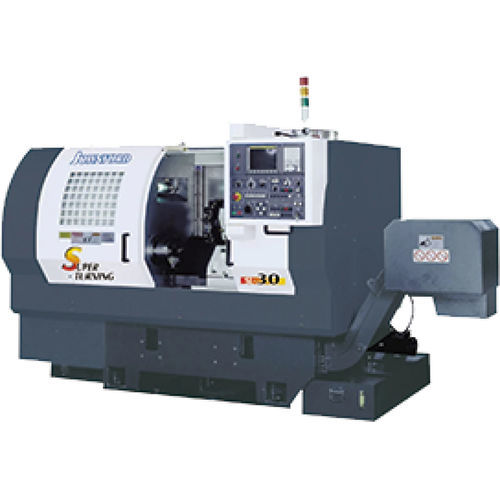

CNC turning center SL SERIES3-axisrigidA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- rigid
- Spindle mount
- A2-6, A2-5
- Number of tool stations
- 12 tools
- Performance
- high-performance
- Other characteristics
- compact
- Associated function
- milling
- Diameter
Max.: 350 mm
(13.78 in)Min.: 330 mm
(12.99 in)- Spindle speed
4,500 rpm, 6,000 rpm
(28,274.334 rad.min-1, 37,699.112 rad.min-1)- Part diameter
60 mm
(2 in)- Axe X
180 mm, 190 mm
(7 in, 7 in)- Axe Z
400 mm, 600 mm
(16 in, 24 in)- Overall lenght
3,525 mm, 3,680 mm
(139 in, 145 in)- Overall width
1,851 mm, 1,852 mm
(73 in, 73 in)- Overall height
1,710 mm, 1,862 mm
(67 in, 73 in)- Weight
3,800 kg, 4,000 kg, 4,200 kg
(8,378 lb, 8,818 lb, 9,259 lb)
Description
Compact but rigid and versatile.
High performance cutting capabilities in turning, milling and even both together in one single set-up.
•Compact design with rigid box ways for utmost stability and cutting performance.
•Slant bed design with 30° and 45° for better chip removal capability
•Sub-spindle or counter-spindle is available
