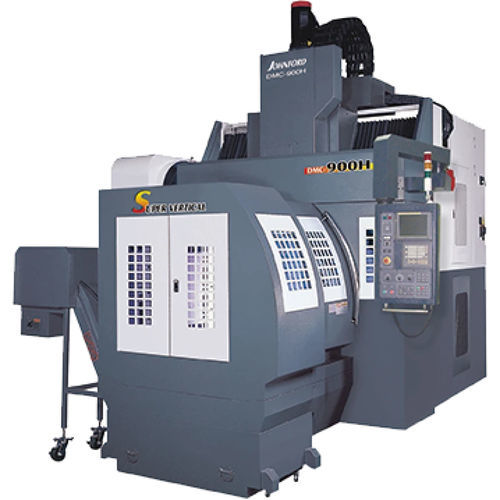

3-axis machining center DMC series
verticalcolumn typemilling

3-axis machining center
3-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Associated functions
milling
Applications
for heavy-duty machining
Other characteristics
high-performance, high-rigidity
X travel

900 mm, 1,200 mm, 1,500 mm
(35.43 in, 47.24 in, 59.06 in)

Y travel

900 mm
(35.43 in)

Z travel

762 mm
(30 in)

Rotational speed

Max.: 18,000 rpm
(113,097 rad.min-1)

Min.: 6,000 rpm
(37,699 rad.min-1)

Table load capacity

3,000 kg, 3,800 kg, 4,600 kg
(6,614 lb, 8,378 lb, 10,141 lb)

Tool weight (max)

10 kg, 15 kg
(22 lb, 33.1 lb)

Overall length

4,490 mm, 4,735 mm, 4,980 mm
(176.8 in, 186.4 in, 196.1 in)

Overall width

3,000 mm
(118.1 in)

Overall height

3,750 mm
(147.6 in)

Description

Customization. Born rigid. Born versatile. •A high-rigidity, high-reliability and high-performance machine built for heavy-duty machining. •In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining. •From the smallest machine with 900 mm X-axis to the biggest machine with 6000 or 8000 mm, JOHNFORD makes according to your needs. •W-axis on this machine is also available for the large DMC series
