3-axis machining center DMC SERIES
verticalcolumn typeBT 40

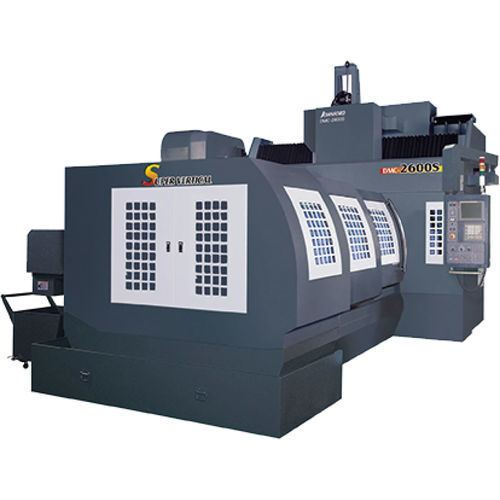

3-axis machining center - DMC SERIES - Roundtop Machinery Industries - vertical / column type / BT 40
3-axis machining center - DMC SERIES - Roundtop Machinery Industries - vertical / column type / BT 40
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Spindle mount
BT 40, CAT40
Number of tool stations
32 tools, 24 tools, 40 tools
Associated functions
milling
Applications
for heavy-duty machining
Other characteristics
high-performance, high-rigidity
X travel

Max.: 6,100 mm
(240.16 in)

Min.: 2,100 mm
(82.68 in)

Y travel

1,778 mm
(70 in)

Z travel

800 mm
(31.5 in)

Rotational speed

Max.: 20,000 rpm
(125,664 rad.min-1)

Min.: 6,000 rpm
(37,699 rad.min-1)

Table load capacity

10,000 kg, 12,000 kg
(22,046 lb, 26,455 lb)

Tool weight (max)

10 kg, 15 kg
(22 lb, 33.1 lb)

Overall length

Max.: 15,590 mm
(613.8 in)

Min.: 6,633 mm
(261.1 in)

Overall width

4,065 mm, 4,070 mm
(160 in, 160.2 in)

Overall height

3,883 mm, 4,013 mm
(152.9 in, 158 in)

Description

Customization. Born rigid. Born versatile. •A high-rigidity, high-reliability and high-performance machine built for heavy-duty machining. •In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining. •From the smallest machine with 900 mm X-axis to the biggest machine with 6000 or 8000 mm, JOHNFORD makes according to your needs. •W-axis on this machine is also available for the large DMC series
