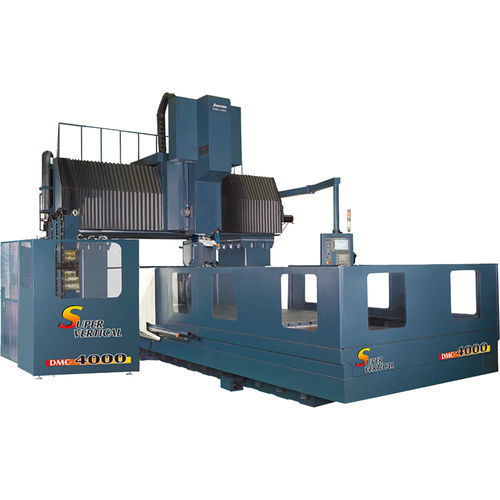

4-axis machining center DMC SERIESverticalcolumn typeBT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Structure
- column type
- Spindle mount
- BT 50, CAT50
- Number of tool stations
- 60 tools, 120 tools, 80 tools, 40 tools
- Associated functions
- milling
- Applications
- for heavy-duty machining
- Other characteristics
- high-performance, high-rigidity
- X travel
4,000 mm, 6,000 mm
(157.48 in, 236.22 in)- Y travel
2,800 mm, 3,600 mm
(110.24 in, 141.73 in)- Z travel
800 mm, 1,066 mm
(31.5 in, 41.97 in)- Rotational speed
Min.: 10 rpm
(63 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)- Table load capacity
3,000 kg, 20,000 kg
(6,614 lb, 44,092 lb)- Tool weight (max)
20 kg
(44.1 lb)- Weight
Min.: 59,200 kg
(130,513.66 lb)Max.: 68,000 kg
(149,914.34 lb)- Overall length
10,900 mm, 11,200 mm
(429.1 in, 440.9 in)- Overall width
5,680 mm, 6,000 mm, 6,500 mm, 7,400 mm
(223.6 in, 236.2 in, 255.9 in, 291.3 in)- Overall height
4,265 mm, 4,531 mm, 4,550 mm, 4,850 mm, 6,500 mm
(167.9 in, 178.4 in, 179.1 in, 190.9 in, 255.9 in)
Description
Customization. Born rigid. Born versatile.
•A high-rigidity, high-reliability and high-performance machine built for heavy-duty machining.
•In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining.
•From the smallest machine with 900 mm X-axis to the biggest machine with 6000 or 8000 mm, JOHNFORD makes according to your needs.
•W-axis on this machine is also available for the large DMC series
