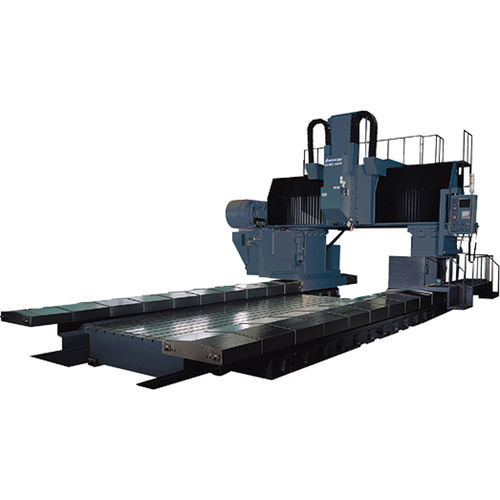

Double-column machining center SDMC-6000 series 4-axisverticalBT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- BT 50, CAT50
- Number of tool stations
- 60 tools, 120 tools, 80 tools, 40 tools
- Associated functions
- milling
- Applications
- for heavy-duty machining
- Other characteristics
- high-performance, rigid
- X travel
6,000 mm
(236.22 in)- Y travel
2,800 mm
(110.24 in)- Z travel
800 mm, 1,066 mm
(31.5 in, 41.97 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Tool weight (max)
20 kg
(44.1 lb)- Weight
63,000 kg, 65,000 kg
(138,891.23 lb, 143,300.47 lb)- Overall length
11,200 mm
(440.9 in)- Overall width
6,000 mm
(236.2 in)- Overall height
4,265 mm, 4,531 mm
(167.9 in, 178.4 in)
Description
Customization. Born rigid. Born versatile.
•high-rigidity, high-performance and high-performance machine built for heavy-duty machining.
•In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining.
•X-axis up to 30 m, Y-axis up to 10 m and W-axis up to 3 m are all available.
•Linear scales on X-axis as standard for optimum accuracy.
Catalogs
No catalogs are available for this product.
See all of Roundtop Machinery Industries‘s catalogsOther Roundtop Machinery Industries products
SLIDING DOUBLE COLUMN MACHINING CENTERS (PORTAL MACHINING CENTERS)
