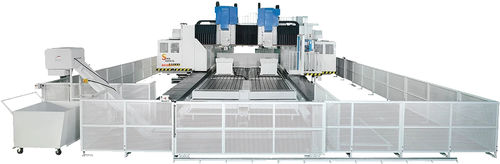

Double-column machining center SDMC-11000-2H-5F3-axisverticalmilling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Associated functions
- milling
- Applications
- for heavy-duty machining
- Other characteristics
- high-performance
- X travel
11,000 mm
(433.07 in)- Y travel
3,200 mm
(125.98 in)- Z travel
1,066 mm
(41.97 in)- Rotational speed
4,000 rpm
(25,133 rad.min-1)- Tool weight (max)
25 kg
(55.1 lb)- Weight
108,800 kg
(239,862.94 lb)- Overall length
21,000 mm
(826.8 in)- Overall width
12,500 mm
(492.1 in)- Overall height
4,840 mm
(190.6 in)
Description
Customization. Born rigid. Born versatile.
•high-rigidity, high-performance and high-performance machine built for heavy-duty machining.
•In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining.
•X-axis up to 30 m, Y-axis up to 10 m and W-axis up to 3 m are all available.
•Linear scales on X-axis as standard for optimum accuracy.
