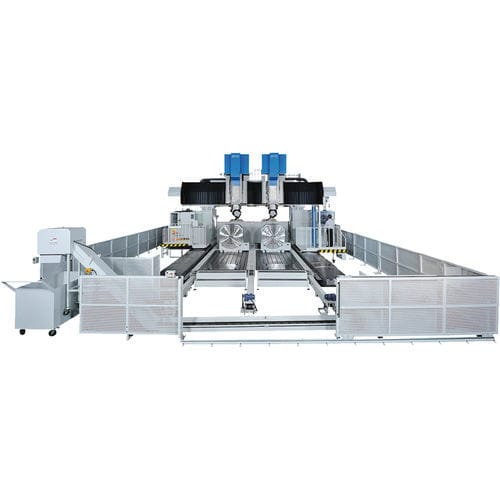

5-axis machining center SDMC-11000-2H-TU35
verticaldouble-column60 tools

5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
double-column
Number of tool stations
60 tools
Associated functions
milling
Applications
for heavy-duty machining
Other characteristics
high-performance
X travel

11,000 mm
(433.07 in)

Y travel

3,200 mm
(125.98 in)

Z travel

1,400 mm
(55.12 in)

Rotational speed

4,500 rpm
(28,274 rad.min-1)

Tool weight (max)

25 kg
(55.1 lb)

Weight

131,000 kg
(288,805.56 lb)

Overall length

21,010 mm
(827.2 in)

Overall width

12,500 mm
(492.1 in)

Overall height

5,830 mm
(229.5 in)

Description

Customization. Born rigid. Born versatile. •high-rigidity, high-performance and high-performance machine built for heavy-duty machining. •In addition to the machine itself, JOHNFORD also designs and makes all types of milling heads, ranging from a simple 90° milling head to an electro 2-axis continuous head for simultaneous 5-axis machining. •X-axis up to 30 m, Y-axis up to 10 m and W-axis up to 3 m are all available. •Linear scales on X-axis as standard for optimum accuracy.
