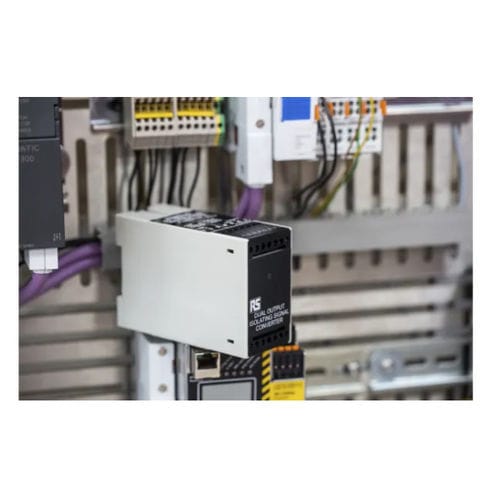

Analog signal converter 466-2264

isolatorDIN rail

By using this signal conditioner from RS PRO, you can convert a single mA or voltage input into two independently isolated current or voltage outputs. The analogue-to-analogue signal conditioner suits applications that need local operation as well as remote monitoring and control. Its three-port (input/output/supply) isolation effectively eliminates ground loop currents and electrical noise. The DIN-rail mountable BM320 conditioner supports DC inputs ranging from 4 mA to 20 mA. The innovative design and robust construction use high-quality components to allow this converter to handle temperatures of 0°C to +45°C. Thanks to screw-type termination, installation in the field is quick and easy, with no need for specialised tools. From the trusted RS PRO range, this product is stringently tested for quality and consistency. Thanks to its durability and reliability, the BM320 signal converter is widely used for military and industrial-process monitoring. • Converts single current input to two independently isolated current outputs • Input current range of 4 mA to 20 mA • Minimum operating temperature of 0°C • Maximum operating temperature of +45°C • Red LED 'power on' indicator • DIN rail mounting • Screw-type termination for easy installation • Maintains full 3-port isolation RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
