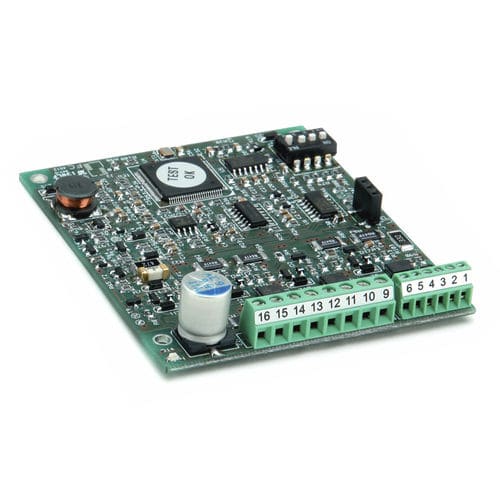

Stepper motor driver BSD 02.V

DC

► New series of microstep stepping motor drives specifically developed for small and mid-size stepping motors. ► Ultra-compact and optimized design to reduce space and cost, combined with Adaptive Microstepping technology ensuring noise and vibration suppression. ► Target: simple and effective motion control solutions requiring low power, high precision, smoothness of movement and low acoustic noise. ► Ideal solution to replace integrated circuits and self-made, low power drives. The perfect choice for small routers, medical, 3D printers and all types of compact machines. HIGHLIGHTS ► Full digital microstepping drive. ► Adaptive microstepping up to 3.200 step/rev. ► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control. ► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives. TECHNICAL SPECIFICATIONS ► Version: open frame drive in 78 x 68 x 21 mm, equipped with screw-type connectors. ► Range of operating voltages: 24-48 VDC. ► Range of current: 0.7-2.2 Amp. Setting up to four possible values by means of a dip-switch. ► Microstepping: 400, 800, 1.600, 3.200 steps/revolution. Setting by means of a dip- switches. ► Automatic current reduction at motor standstill. ► Management of the current profile setting by means of a dip-switch. ► Protections: -Protection against under-voltage and over-voltage. -Protection against a short-circuit at motor outputs. ► Electronic damping facility for further acoustic noise and mechanic vibrations reduction. ► Warranty: 24 months.
