DC motor HI-MOD B
steppercompactNEMA 34

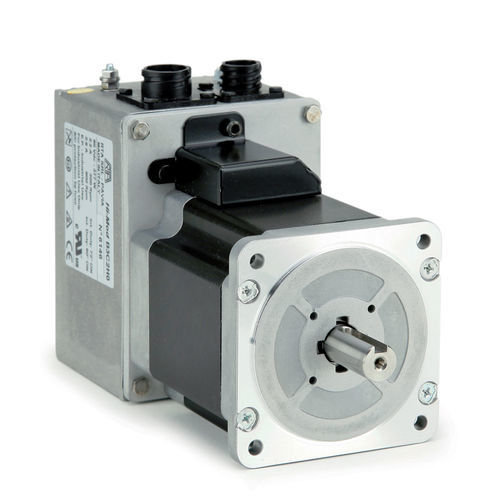

DC motor - HI-MOD B - R.T.A. srl - stepper / compact / NEMA 34

DC motor - HI-MOD B - R.T.A. srl - stepper / compact / NEMA 34 - image - 2

DC motor - HI-MOD B - R.T.A. srl - stepper / compact / NEMA 34 - image - 3

Add to favorites

Compare this product

Characteristics

AC/DC: DC
Type: stepper
Configuration: compact, NEMA 34
Number of poles: 2-pole
Other characteristics: high-efficiency, low-speed, UL certified, integrated-drive

Description

► Series of stepper motors with integrated ministep bipolar chopper drives equipped with STEP & DIRECTION interface. ► Compact system housed in a metallic box mounted on motor body, minimizing dimensions and optimizing wiring and mounting easiness. ► Target: distributed electronics applications requiring great dynamic performance, high reliability and compactness. ► UL/CSA certified. ► Microstepping function up to 4.000 step/rev. ► Communication by means of STEP & DIRECTION interface. ► Electronic resonance damping circuit to ensure acoustic noise and mechanic vibrations reduction at low speed. ► Available with three motor sizes NEMA 34 -[] 86 mm. (1, 2 and 3 stack). It is ideal for distributed electronics applications. ► Range of operating voltages: 32-75 VDC. ► Microstepping: 400, 800, 1.600, 3.200 and 500, 1.000, 2.000, 4.000 steps /revolution. Setting by means of a rotatory dip-switch. ► Automatic current reduction at motor standstill. vProtections: -Protection against under-voltage and over-voltage. -Protection against a short-circuit at motor outputs. -Overtemperature protection. vElectronic resonance damping circuit to ensure acoustic noise and mechanic vibrations reduction at low speed. ► Optoinsulated inputs and outputs. ► High efficiency CHOPPER with MOSFET final stage output. ► UL/CSA certified.
