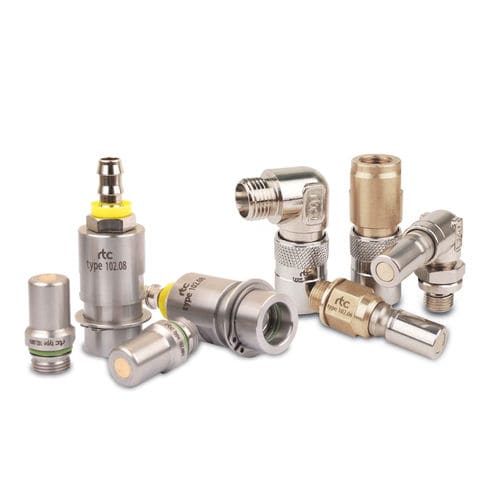

Hydraulic fitting 102 seriesquick90° anglebrass
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- quick
- Configuration
- 90° angle
- Material
- brass, stainless steel
- Diameter
Max.: 16 mm
(0.63 in)Min.: 6 mm
(0.236 in)- Operating pressure
Max.: 50 bar
(725.19 psi)Min.: 0 bar
(0 psi)
Description
Standard version - Standardversion
FPM (V)
Options - Optionen
SS Stainless Steel - Edelstahl
E EPDM Seal - EPDM Dichtung
W FFKM Seal - FFKM Dichtung
Colour coding - Farbkodierung
R Red - Rot
B Blue - Blau
PP Push-Pull disconnect by using one hand
Eine Hand Kuppeln Push-Pull Lösen
Using Area
- On temperature regulation applications
with hot or cold water, oil etc.
- Blow moulding industry
- Injection moulding industries.
- On steam line.
